SITTI emergency access device (EAD) in Dijbouti

SITTI has always been on the forefront in the development of advanced and technologically unparalleled solutions for the ATC/ATM fields (Air Traffic Control/Management). Among these, EAD is particularly interesting because it provides final users with an emergency, easy-to-use, reliable means for getting access to remote radios in contingency situations.

EAD (Emergency Access Device) is a compact all-in-one, powerful and modular solution, designed in accordance with EUROCAE ED137 standard. The concept behind EAD design is to serve Air Traffic Control Centres for contingency purposes as Last Resort System, but its performance perfectly fits the applications for small-sized airports or towers, transportable solutions and movable shelters.

EAD allows direct VoIP ED137 communications with any radio equipment. Whenever required, it can be also equipped with telephone connectivity, allowing ED137-based calls to other devices connected through the LAN/WAN and supporting the functionality. EAD can manage up to 8 simultaneous VoIP connections to single channel radios using the EUROCAE ED137 standard and SIP/RTP protocol for voice traffic:

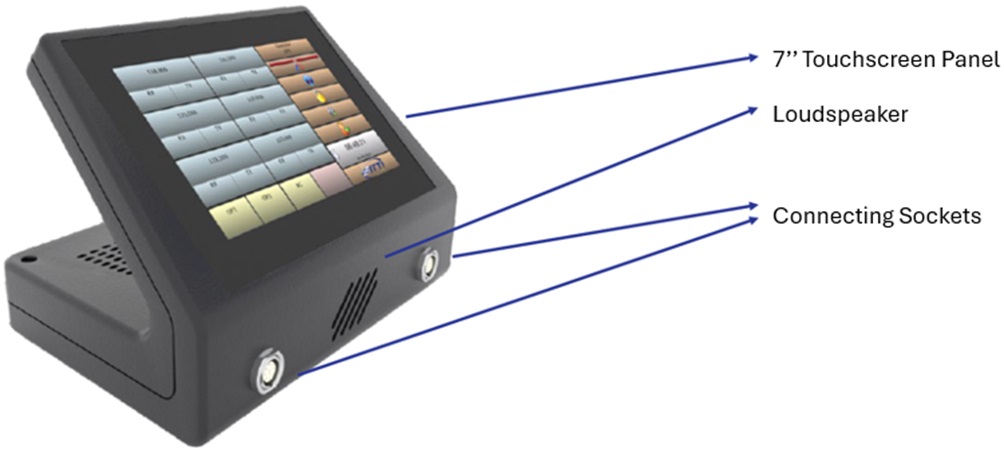

Because of its intrinsic flexibility and reliability, SITTI EAD solutions are about to be installed at the Djibouti airport, in one of the most strategic areas in the world, just in front of the entrance to the Red Sea. Through its 7-inch touch-screen, local controllers can connect their electroacoustic devices (headphone/microphone/PTT) to establish emergency radio connections sparse over the territory.

SITTI is a primary VCS manufacturer and supplier worldwide, capable of giving prompt and top edge solution answers to Customer needs, both in the Civil and Military fields. The leading edge, redundant, non-blocking architecture of the SYNCRONIS® MULTIFONO® M800IP® provides flexibility and modularity for easy expansion and addition of further functionalities.
